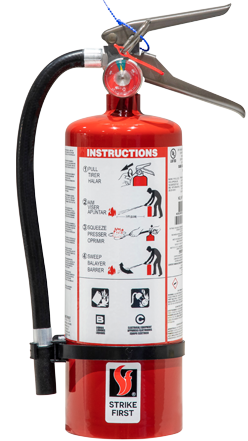

5 LB. STANDARD DRY CHEMICAL
PORTABLE FIRE EXTINGUISHER

5lb

Built tough and easy to service

  • Modified universal valve body
  • Accepts both pin or fork wall hooks
  • Steel cylinder
  • Super durable polyester powder paint finish with superior corrosion resistance
  • Waterproof stainless steel gauge
  • Handle reinforced, full grip hardcoat anodized aluminum
  • Oversized pull pin with retaining strap for easier and faster activation
  • Color and bar coded labels for accurate service
  • Complies with NFPA 10 Standard
  • Meets D.O.T. Requirements
  • U.S.C.G. approved with bracket listed on label
  • Temperature range: -65°F to 120°F (-54°C to 49°C)
Specifications
Approval UL ListedULC
ModelSF-SB5
Capacity5 lbs.
UL/ULC Rating10-B : C
*U.S.C.G. ApprovalType B:C Size I
Range8 - 10 ft (2.5 - 3 m)
Temperature Range-65°F to 120°F (-54°C to 49°C)
Discharge Time13 sec.
PSI195
Height15 1/4" (39 cm)
Width6 3/4" (17 cm)
Diameter4 1/4" (11 cm)
Weight10 1/2 lbs. (4.8 kgs.)
BC Dry Chemical

The 5 lb. standard dry chemical portable fire extinguisher is designed for:

flammable liquids and gases

Class B
flammable liquids and gases

electrical equipment

Class C
electrical equipment

Download product sheetBC Dry Chemical SDSService Manual

Manufactured and tested to the following standards:

  • ANSI/UL 299
  • ANSI/UL 711
  • CAN/ULC-S504
  • CAN/ULC-S508

6 Year Warranty
