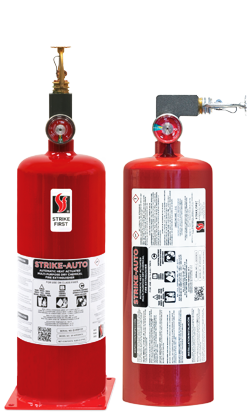

5LB DRY CHEMICAL AUTOMATIC HEAT ACTUATED MULTI-PURPOSE FIRE EXTINGUISHER

5lb

Built tough and easy to service

  • Steel cylinder complete with protective skirt
  • Super durable polyester powder paint finish with superior corrosion resistance
  • UL Listed Heat Activated Sprinkler Head,rated at 165 degrees F (74° Celsius)
  • Meets D.O.T. Requirements Designed to provide supplementary fire protection
  • Available in two mounting styles: horizontal and vertical (Brackets available separately)
  • Disposable unit, does not require maintenance and inspection at 6 or 12 years
  • Typical installation locations: specific fire risk areas such as flammable liquid storage rooms, construction trailers and manufacturing process areas i.e. paint booths
Specifications
Approval
ModelSF-AFE5ABCH | SF-AFE5ABCV
Temperature Range-65°F to 120°F (-54°C to 490°C)
PSI100
Height14.5″ (36.8 cm) | 17″ (43.2 cm)
Width5.8″ (14.7 cm) | 4.25″ (10.8 cm)
Weight8.6 lbs (3.9 kg) | 8 lbs (3.6 kg)
wood, paper, cloth

Class A
wood, paper, cloth

flammable liquids and gases

Class B
flammable liquids and gases

electrical equipment

Class C
electrical equipment

Download product sheetAutomatic Heat Actuated SDSService Manual
