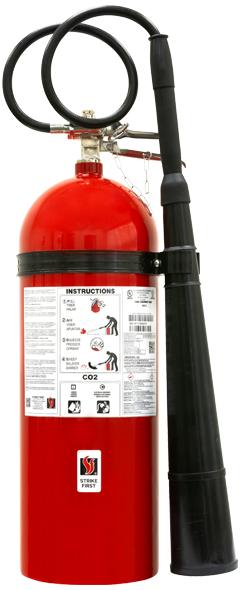

20 LB. CARBON DIOXIDE (CO2)
PORTABLE FIRE EXTINGUISHER

20lb

Built tough and easy to service

  • Well suited for corrosive environments
  • Super durable polyester powder paint finish with superior corrosion resistance
  • Industrial strength aluminum cylinder
  • Stainless steel handles, pull pin, retaining chain and hose band
  • Chrome-plated solid brass valve
  • Strong impact-resistant horn
  • Colour and bar-coded labels for accurate service
  • Complies with NFPA 10 Standard
  • D.O.T. approved cylinder
  • U.S.C.G. approved with bracket listed on label
  • Temperature range: -22°F to 120°F (-30°C to 49°C)
Specifications
Approval UL ListedULC
ModelSF-20CO2A
Capacity20 lbs.
UL/ULC Rating10-B : C
Range6 - 12 ft (2 - 2.5 m)
Temperature Range-22°F to 120°F (-30°C to 49°)
Discharge Time20 sec.
Height26 1/4" (66.7 cm)
Width12" (30.5 cm)
Diameter8" (21 cm)
Weight48 1/8 lbs. (21.8 kgs.)
CO2

The 20 lb. carbon dioxide (CO2) portable fire extinguisher is designed for:

flammable liquids and gases

Class B
flammable liquids and gases

electrical conductivity

Class C
electrical conductivity

Download product sheetCO2 Carbon Dioxide SDSService Manual

Manufactured and tested to the following standards:

  • ANSI/UL 154
  • ANSI/UL 711
  • CAN/ULC-S503
  • CAN/ULC-S508

5 Year Warranty
